Hybrid+ IM8.4U

Mixer – Installation

The Hybrid+ IM8.4U is a 6 input, 4 zoned output, 19″ rack mounted, analogue installation mixer, ideal for fixed installations where multiple rooms/zones require different input sources and/or different SPL levels.
The IM8.4U hosts an abundance of key features needed for complex multi-room installs such as 2 microphone inputs with 3 band EQ, 6 input channels switchable between line and phono, an integrated USB soundcard and four switchable zoned outputs.

IM8.4U
Installation Mixer
Mic Channel 1: Front panel combo XLR/Jack, Rear panel Jack, Gain Control, On-Off switch, Talk-over Switch
Mic Channel 2: Rear panel Jack, Gain Control, On-Off switch, Talk-over Switch
Mic Channels EQ: Rotary Low, Mid and High
Input Channels 1-6: Rotary gain control, Level faders, PFL switch, Signal LED, Clip LED
Input Channels sources: Rear panel switchable, 6 x Line, 2 x Phono, 1 x USB, 1 x Aux, 1 x FOH
Master Output: Rotary Level control, Dual 10 segment LED signal display, Rear panel EQ (Low, Mid and Hi), Rear panel Level control
Zone Outputs A-C: Source Switch between input channels 1-6 + Mix, Level control, PFL switch, 5 segment LED signal display, Rear panel EQ (Low and Hi), Rear panel level control

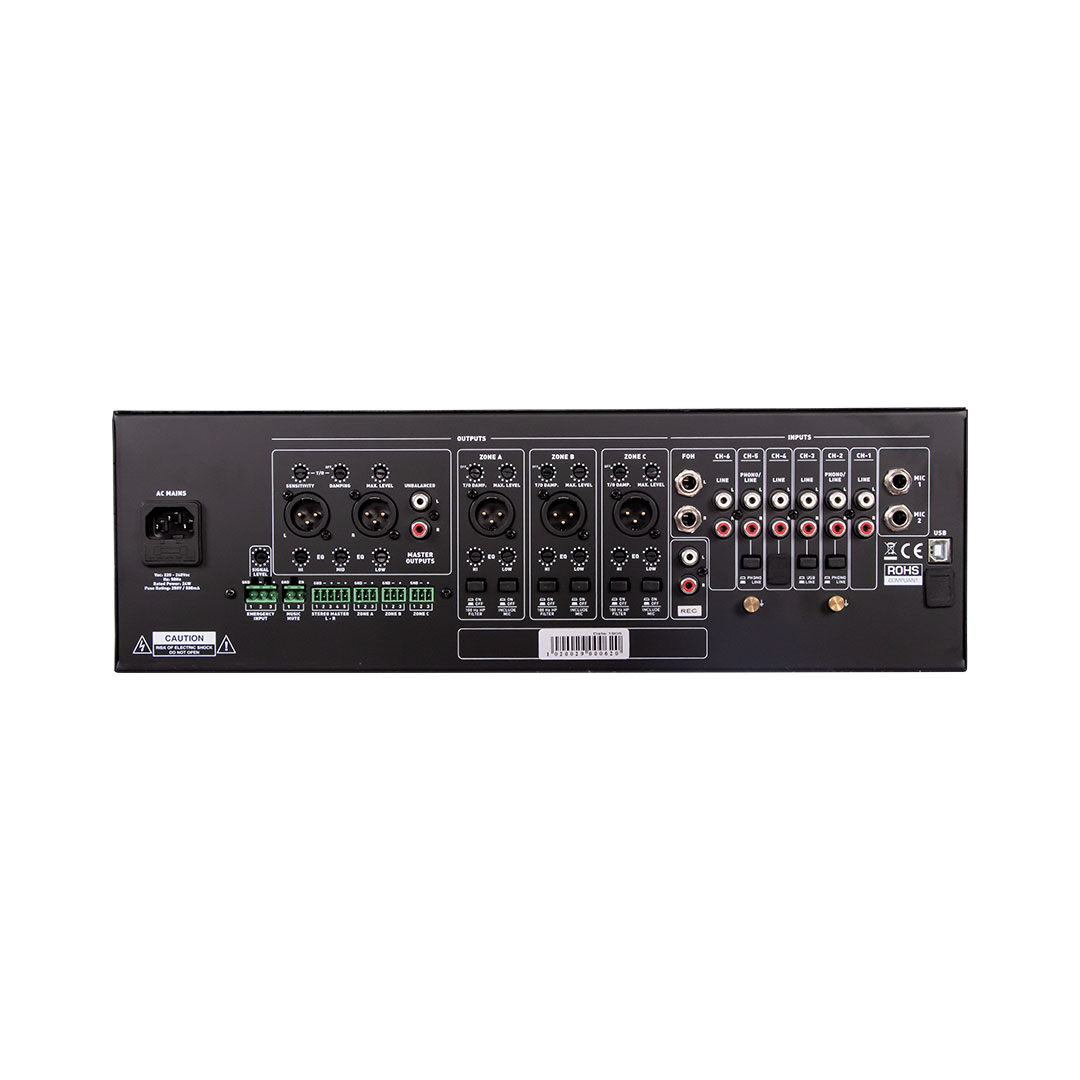

Master Output Connection: Stereo balanced line XLR, Unbalanced RCA
Zone A-C Output Connection: Mono balanced line XLR
Construction: Metal casing, 19″ rack mount, 3U rack high

HYBRID is a South African brand with over 30 years’ experience in professional audio, stage and lighting. Our brand is aimed specifically at the African market to meet our continent’s demands for features, performance and budget.
HYBRID+ is our flagship brand, offering features and performance comparable to world renowned brands and making HYBRID+ one of the best price-to-performance ratio brands.
