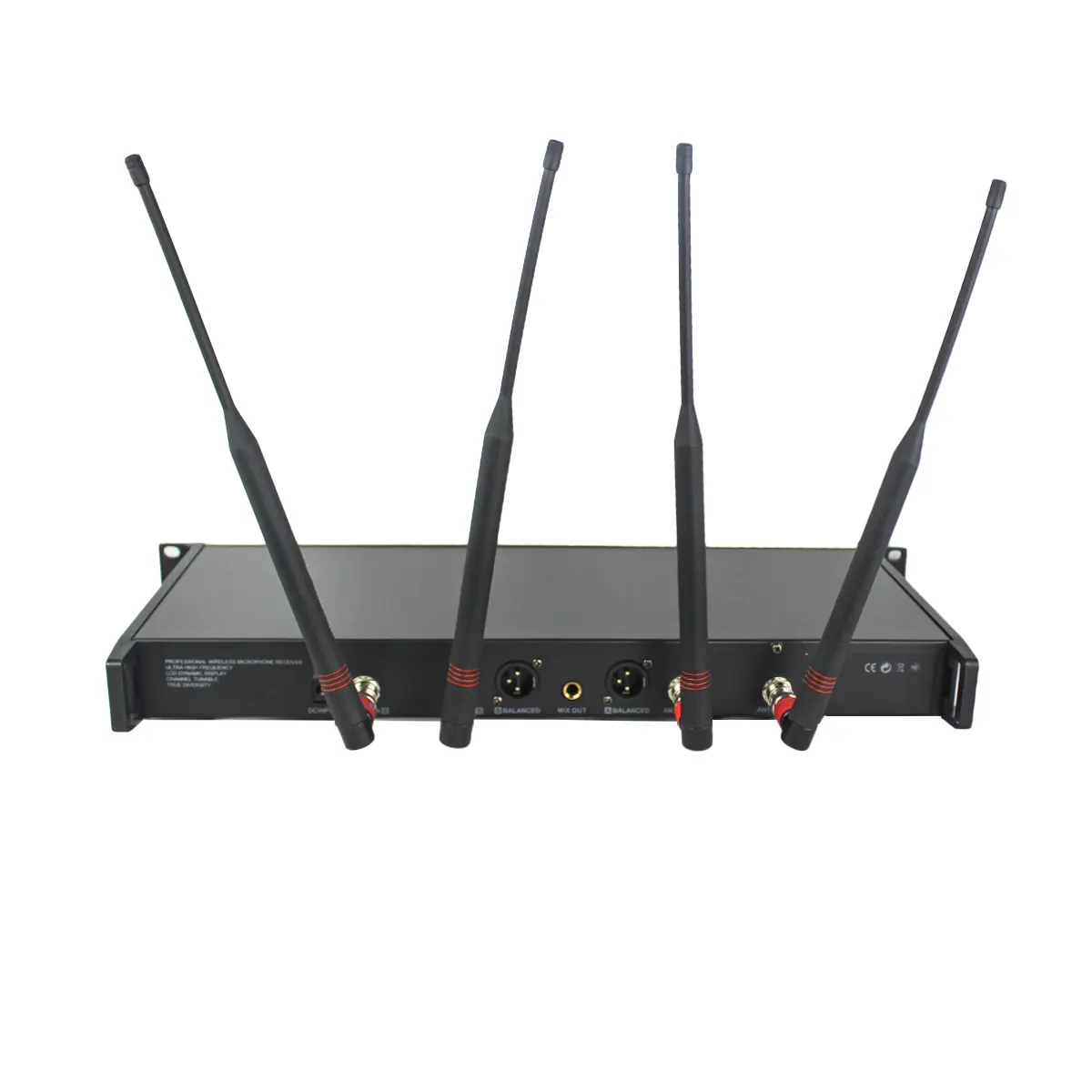

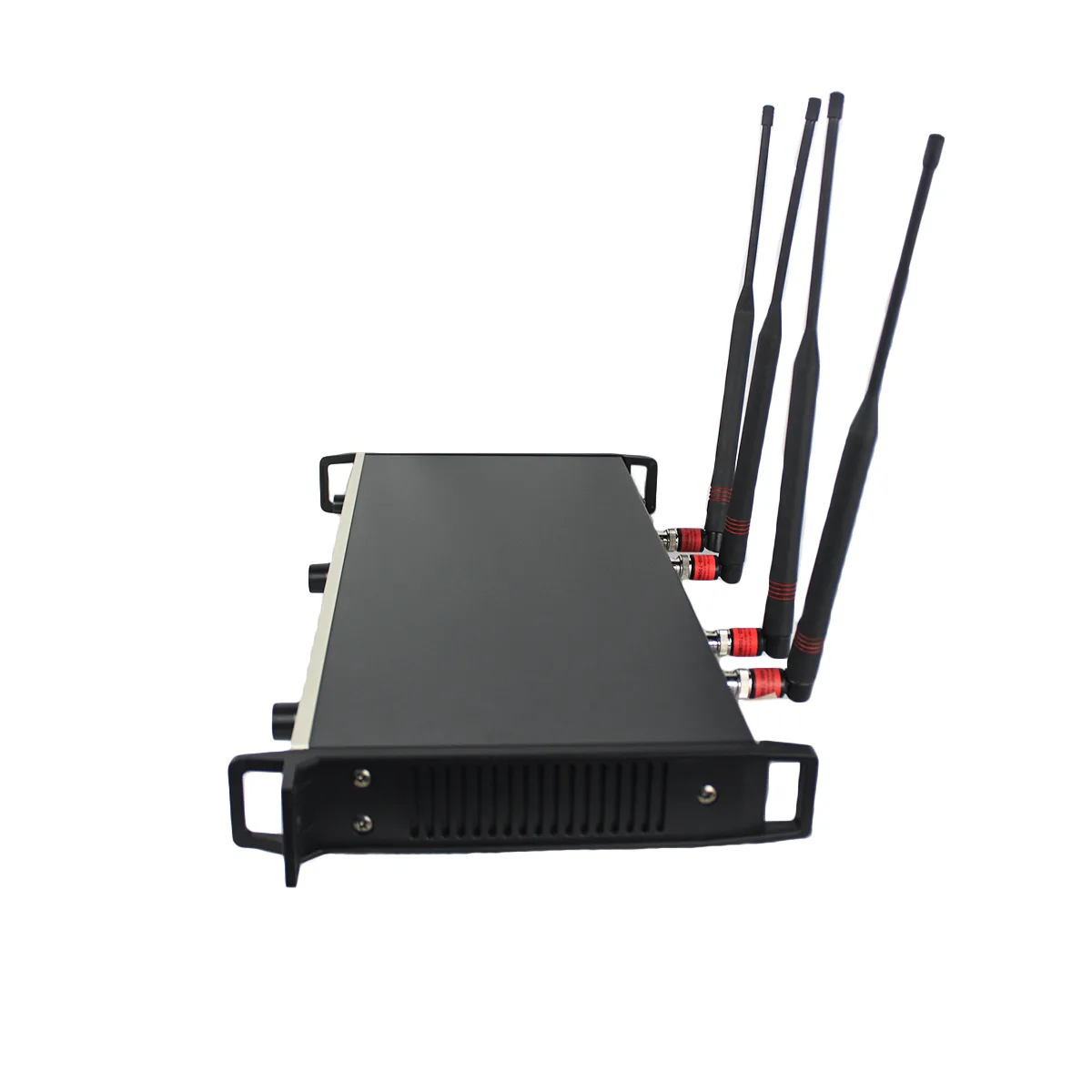

Imix IMHF-TD2 Dual Digital Wireless Microphone

The Imix IMHF-TD2 is a high-performance dual-channel wireless microphone system designed for professional audio applications. Operating in the 500-690MHz frequency range with broadband FM modulation, it offers an adjustable range of 50MHz and supports 250KHz channel spacing for flexible frequency management. The system ensures exceptional frequency stability within ±0.005%, minimizing interference and dropouts.

Key Features:

• True Diversity Reception: Equipped with a double-tuned automatic selection receiver and double-conversion superheterodyne technology for reliable signal capture.
• High Sensitivity: Adjustable sensitivity range of 12-32dBV with a maximum output level of +10dBV.
• Superior Audio Quality: Delivers a dynamic range of 100dB, signal-to-noise ratio >105dB, and comprehensive distortion ≤0.5%.
• Wide Frequency Response: Covers 80Hz-186Hz for clear and natural sound reproduction.
• Robust Performance: Features ±45KHz maximum frequency deviation and ≥75dB spurious suppression for stable operation.

Transmitter Specifications:

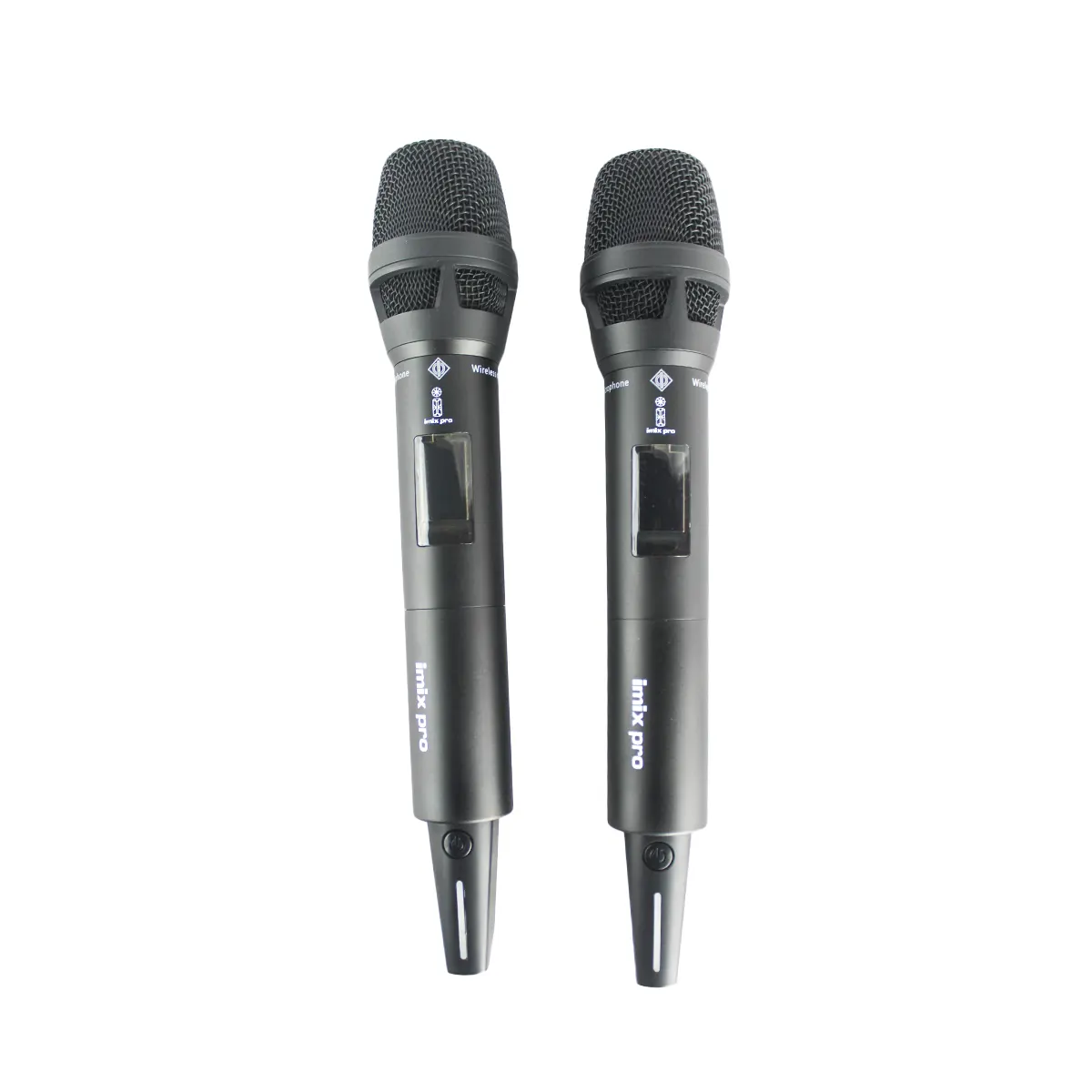

• Flexible Antenna Options: Bodypack transmitter with 1/4 wavelength whip antenna or handheld microphone with built-in helical antenna.
• Adjustable Output Power: 30mW (high) or 3mW (low) for optimized battery life and range.
• Long Battery Life: Over 10 hours at 30mW and 15 hours at 3mW using two AA batteries.
• Effective Spurious Suppression: -60dB for clean signal transmission.

Ideal for: Live performances, broadcasting, conferences, and any setting requiring crystal-clear wireless audio with unmatched reliability.
